Forward, Down, and Perspective/Landscape/Scout Mode

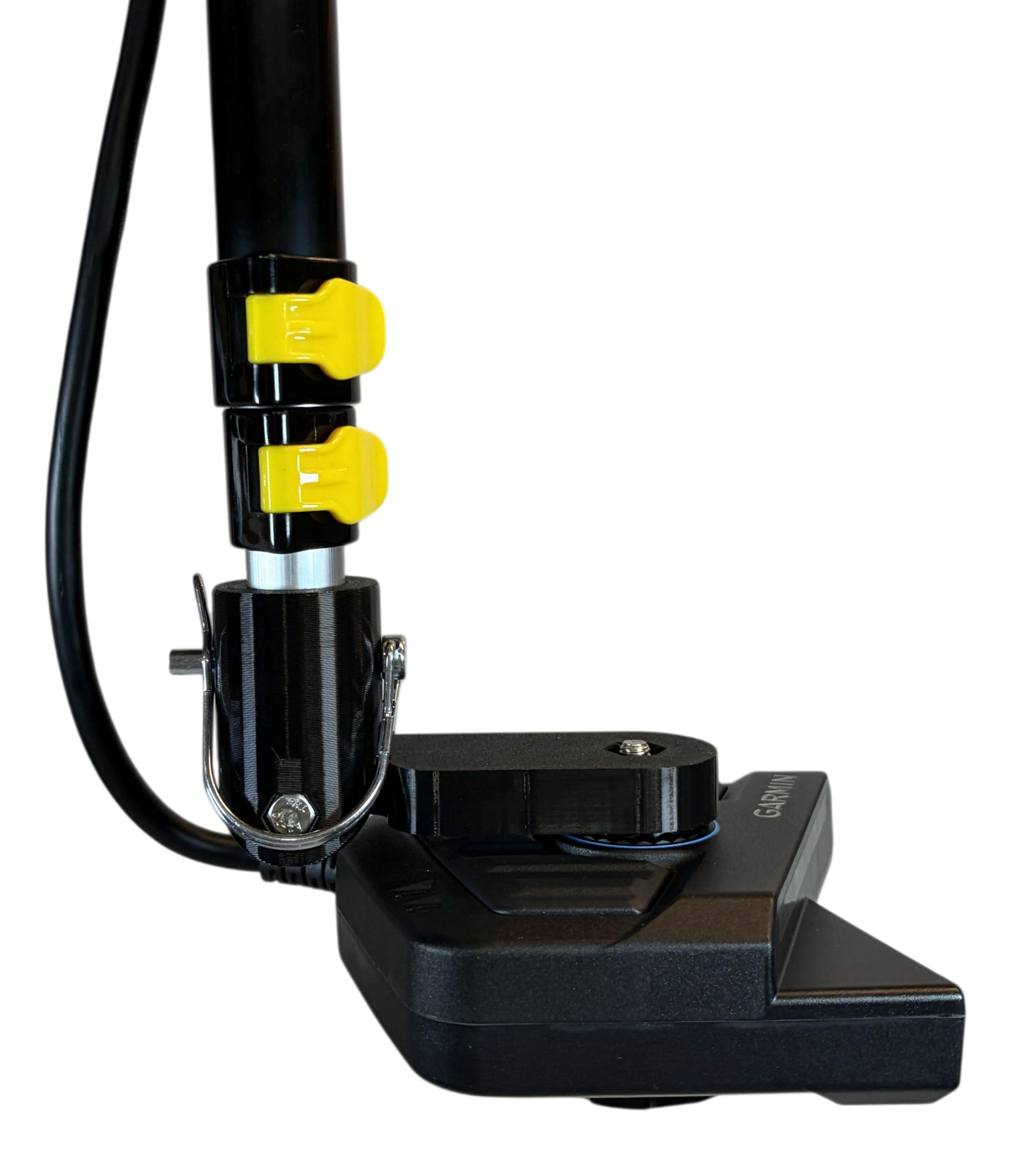

A Garmin LVS32 transducer mounted on a Stratum Outdoors pole in forward mode

Forward Mode

LVS32

A Garmin LVS32 transducer mounted on a Stratum Outdoors pole in down mode

Down Mode

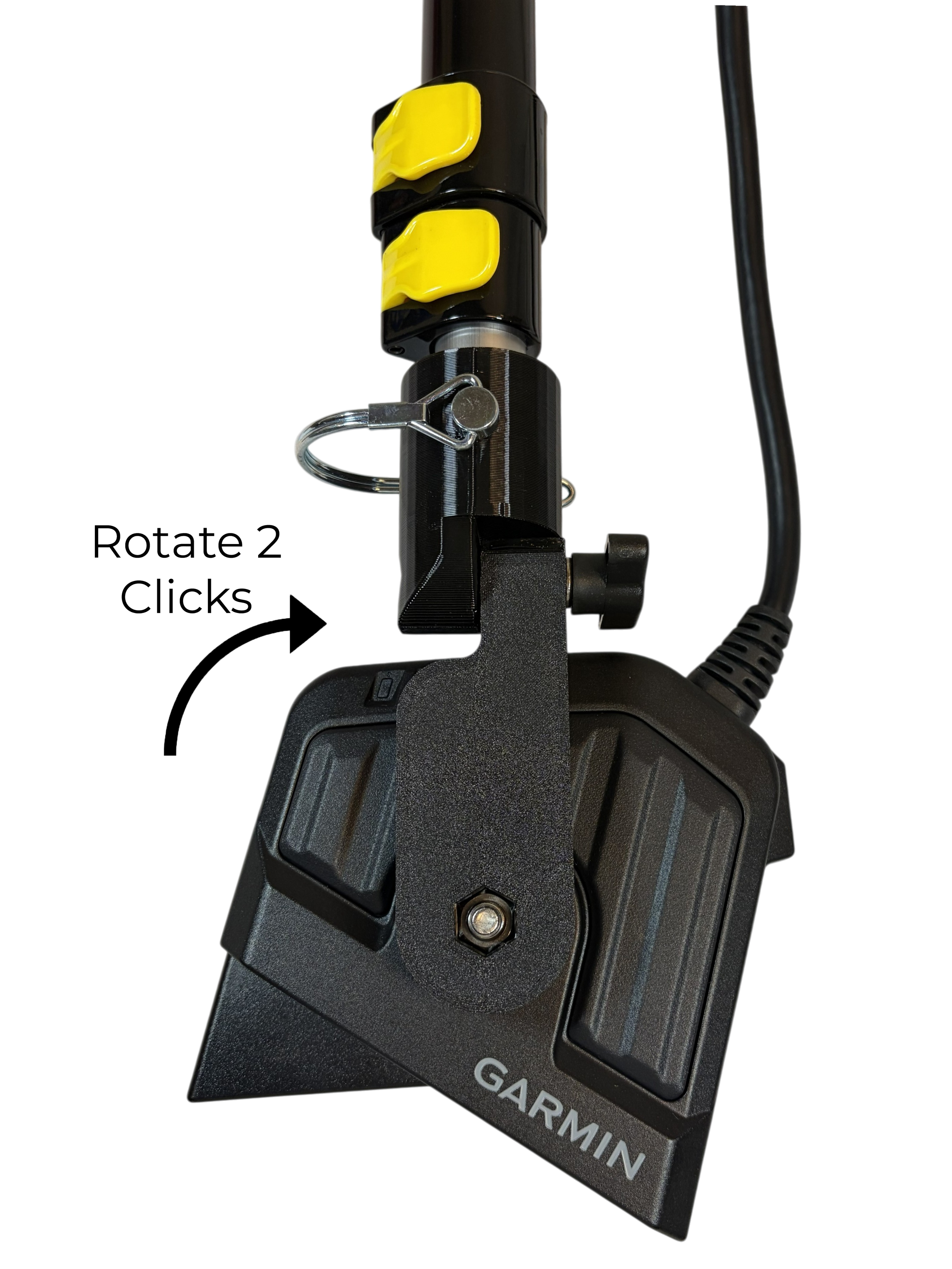

A Garmin LVS32 transducer mounted on a Stratum Outdoors pole in perspective mode

Perspective Mode

Forward, Down, and Perspective Mode Explained

LVS34

A Garmin LVS34 transducer mounted on a Stratum Outdoors pole in forward mode

Forward Mode

A Garmin LVS34 transducer mounted on a Stratum Outdoors pole in down mode

Down Mode

A Garmin LVS32 transducer mounted on a Stratum Outdoors pole in perspective mode

*LVS32 Shown

Perspective Mode

Diagram showing four views of a boat's transducer installation: port side downward view, port side forward view, starboard side downward view, starboard side forward view.
A Humminbird MEGA Live transducer mounted on a Stratum Outdoors pole in forward mode

Mega Live

Forward Mode

A Humminbird MEGA Live transducer mounted on a Stratum Outdoors pole in down mode

Down Mode

A Humminbird MEGA Live transducer mounted on a Stratum Outdoors pole in landscape mode

Landscape Mode

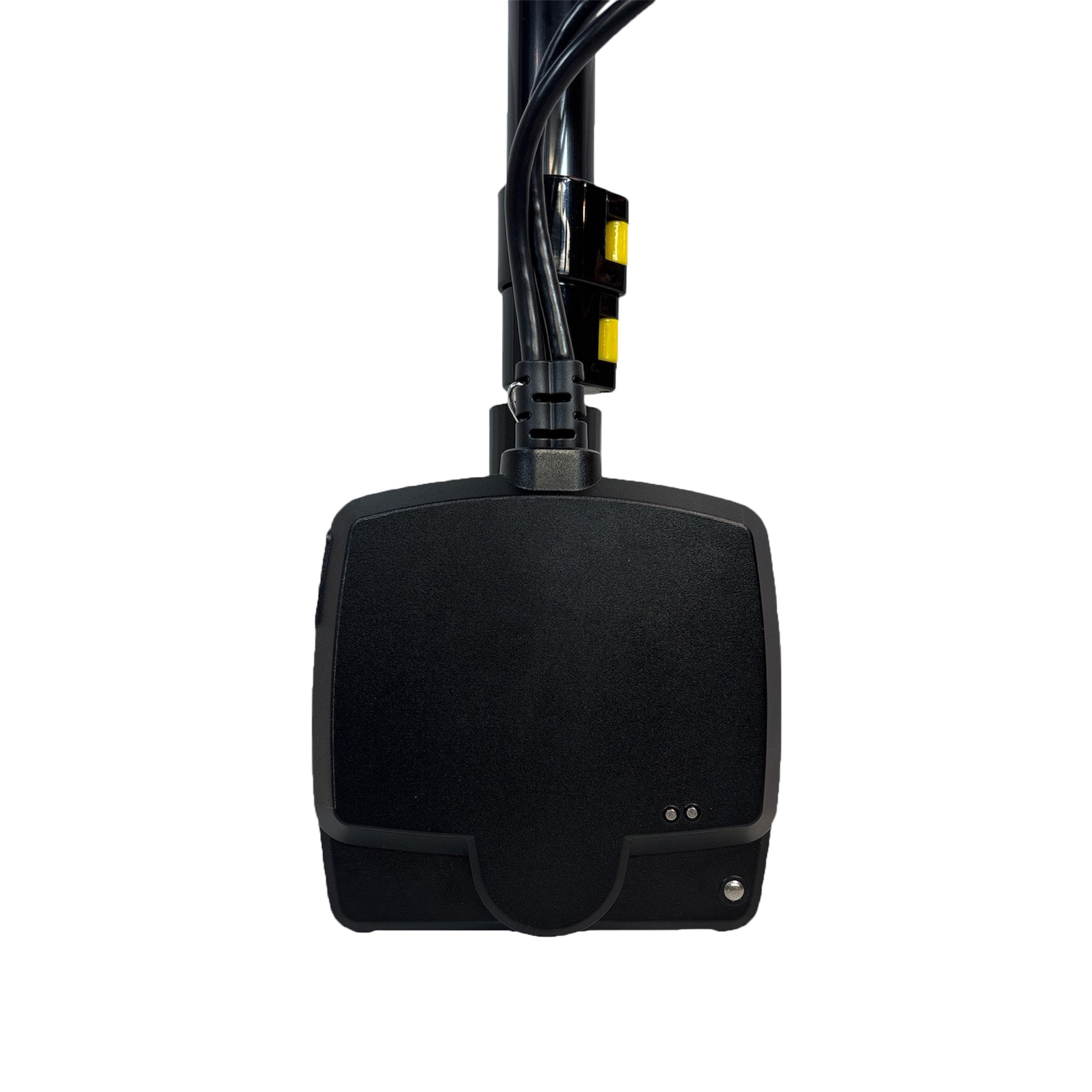

Close-up of a Humminbird MEGA Live transducer mounted on a Stratum Outdoors pole
A black, curved arrow pointing to the left.

Align the groove on the transducer mount with the corresponding "F," "D," or "L" marking to select Forward, Down, or Landscape mode.

*Factory Humminbird folding mount is required

Active Target 1 & 2

A Lowrance Active Target 2 transducer mounted on a Stratum Outdoors pole in forward mode

Forward Mode

A Lowrance Active Target 2 transducer mounted on a Stratum Outdoors pole in down mode

Down Mode

A Lowrance Active Target 2 transducer mounted on a Stratum Outdoors pole in scout mode

*LVS32 Shown

Scout Mode
